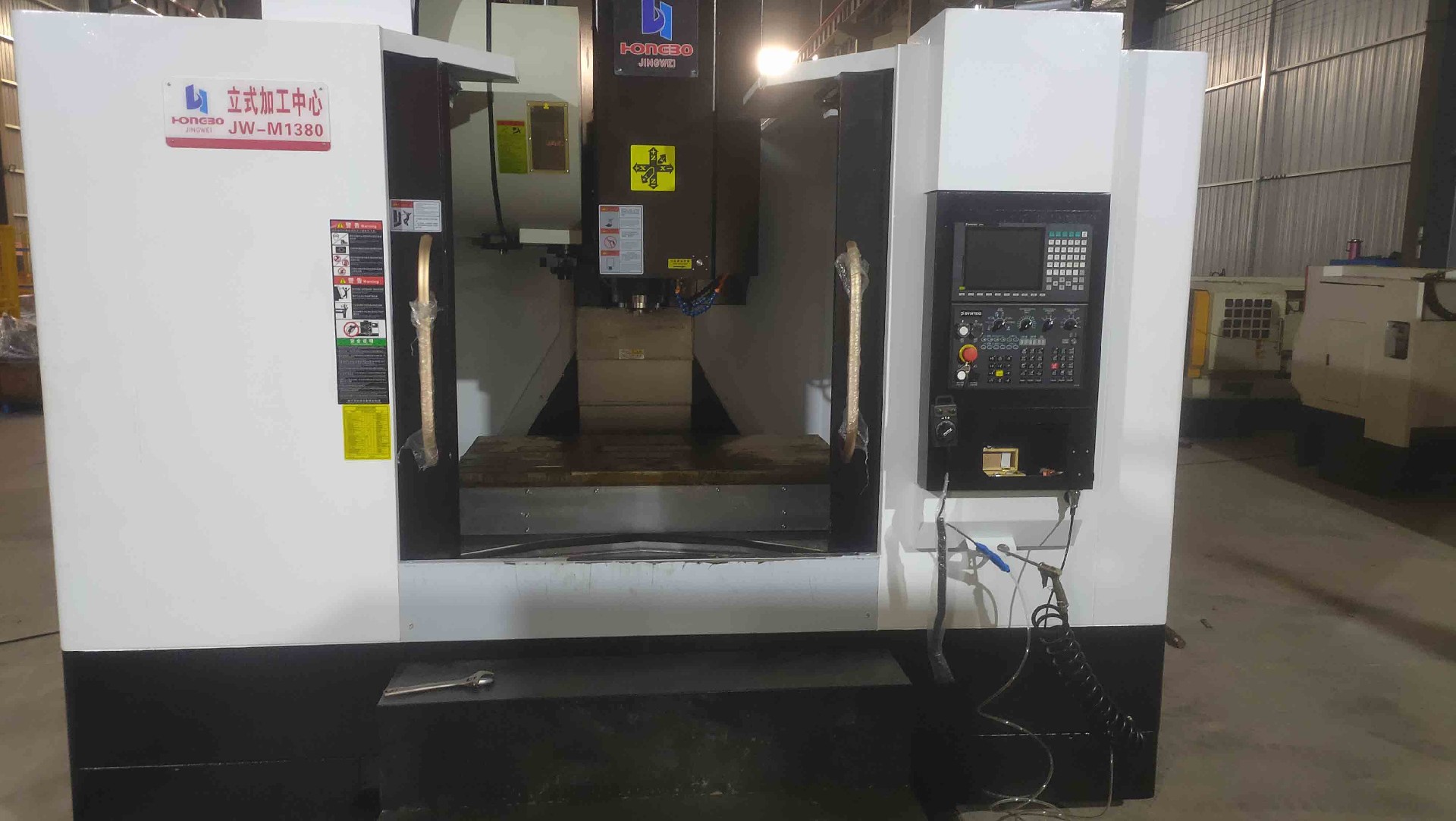

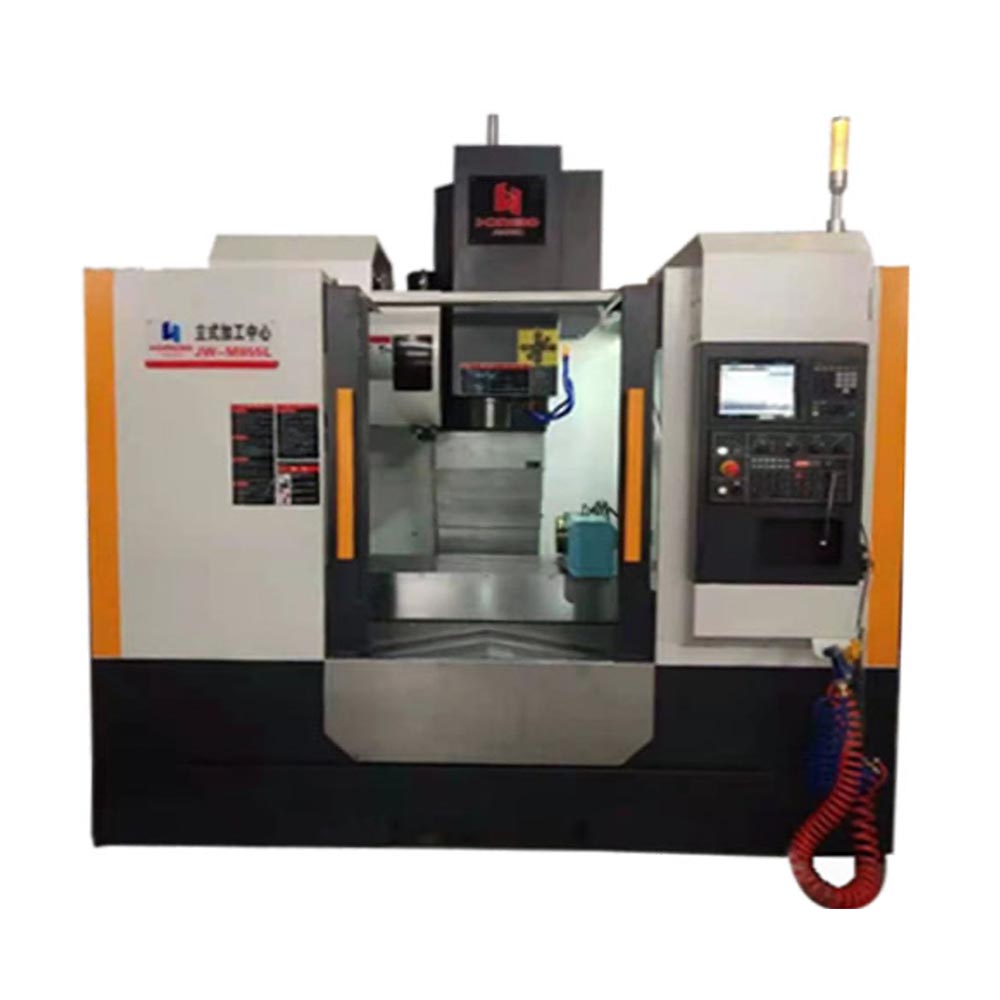

  • Machining Center JW-1380

    The main shaft box and other key components adopt high-quality TH 300 castings. The reasonable structural strength is calculated and analyzed by finite element analysis to provide high mechanical rigidity. The casting structure adopts integrated molding technology box structure machine tool that has high rigidity and high strength geometric positioning accuracy is excellent.

    Description

    1. Main features of the machine tools

    1. The main shaft box and other key components adopt high-quality TH 300 castings. The reasonable structural strength is calculated and analyzed by finite element analysis to provide high mechanical rigidity. The casting structure adopts an integrated molding technology box structure machine tool that has high rigidity and high strength geometric positioning accuracy is excellent. And can ensure the long-term stability and high precision.

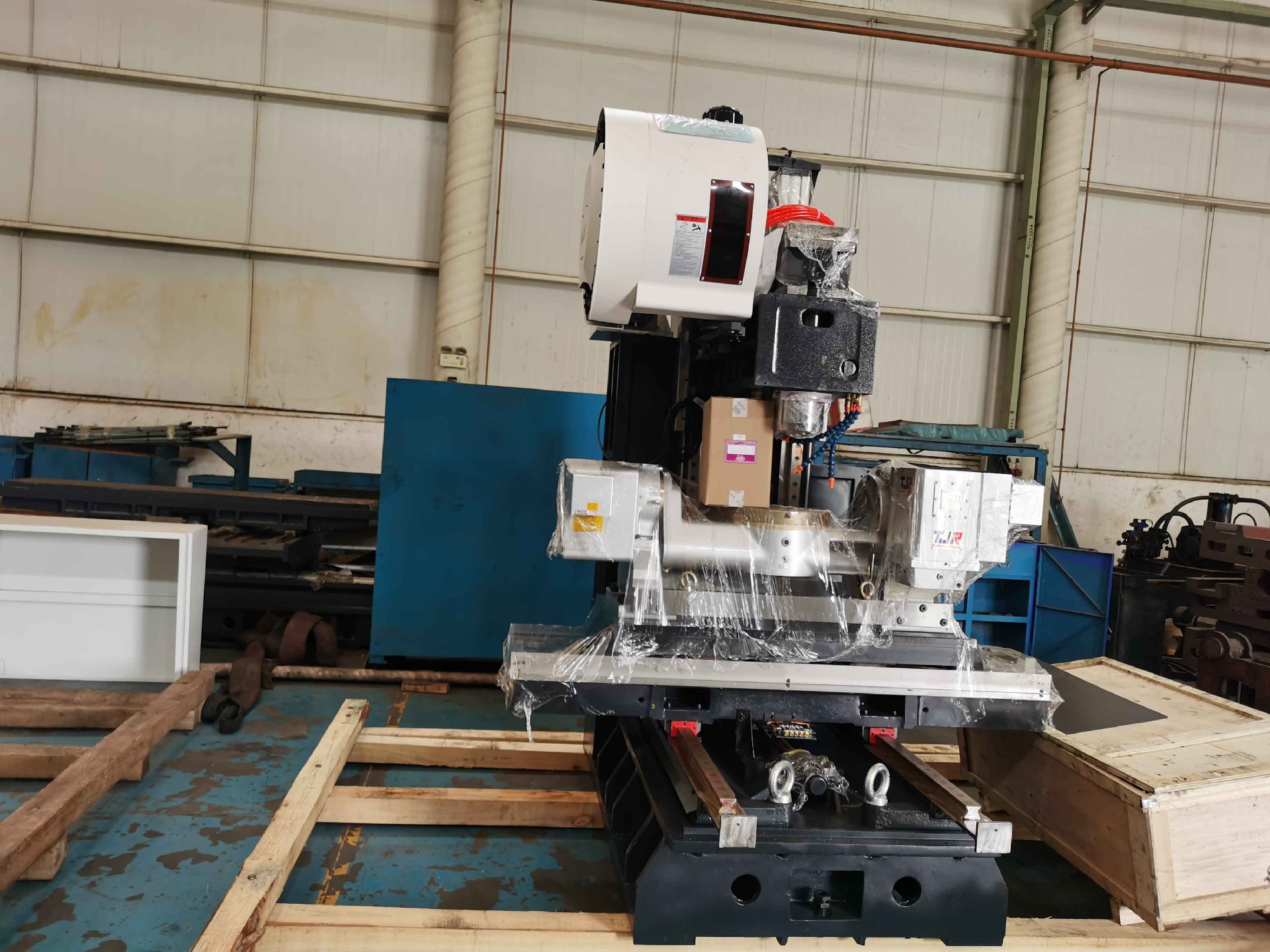

    2. The base is wide, the column is a box structure, the saddle is widened and lengthened, the heavy load full support design, the structure is solid, which can ensure the heavy load capacity during processing.

    3. The spindle box is reinforced with ribs, and the contact length ratio between the spindle box and the column is appropriate to provide stable support for the spindle.

    4. Three-axis motor and precision high-speed ball screw direct drive, enhance rigidity and improve precision.

    5. The three axes adopt roller linear guide rail, which has the characteristics of high rigidity, low noise, and low friction, and can perform fast displacement and obtain the best circular accuracy.

    6. The cutting fluid capacity is large to discharge the cutting heat quickly. The water tank is L-type and placed on both sides of the machine to save space.

    7Fast, simple, reliable, and long-life tool exchange device to provide stable and reliable tool exchange. Unique tool switching device design, advanced cam-type drive mechanism, arbitrary position knife selection ability, and can be quickly controlled by PLC software. The knife changing mechanism has been tested one million times and meets the reliability requirements. Quick knife mechanism saves cutting time and improves production efficiency. The cam-driven knife library ensures high-precision rotation and runs smoothly with heavy-duty tools.

    8. The spindle standard rotation speed is 8,000 rpm. Standard machine set uses a large horsepower spindle motor. Spindle and motor belt connection greatly reduces the transmission noise and heat generation. The spindle uses G-TECH GT-5052A dynamic balance correction equipment to directly correct the spindle's dynamic balance online, so that the spindle can avoid the resonance phenomenon at high speed and ensure the best machining accuracy. Belt 10000 rpm, straight junction 12000 rpm spindle for high-speed cutting (optional).

    9. Use high high-strength and toughness four-flap claw pull knife, large contact surface, strong grasp force, small handle pull nail loss, and long life.

    10. The electrical box adopts the rear hanging design to save space, make the limited space, and obtain the maximum use.


    2﹒Mechanical specifications

    model number

    unit

    JW-M1380

    operating floor

    tablesize

    mm

    1500*800

    Maximum load bearing

    kg

    1000

    T-type slot (width x number x spacing)

    mm

    18x5x150

    Table Travel

    X axis itinerary

    mm

    1300

    Y axis itinerary

    mm

    800

    Z axis itinerary

    mm

    700

    principal axis

    The distance from the main shaft nose to the work table

    mm

    150-850

    Distance from the spindle center to the pillar

    mm

    860

    Main shaft speed

    rpm

    8000

    taper hole of the spindle

    Type

    BT-50

    Spindle transmission mode

    -

    Belt spindle

    Automatically change the knife

    Maximum tool diameter (no adjacent knife)

    mm

    Φ80(Φ130

    Maximum tool length

    mm

    300

    Tool selection


    Random knife selection

    knife handle

    Type

    BT-50

    Knife library capacity

    Pieces

    24

    Tool exchange

    -

    刀臂式

    Tool exchange time (knife to knife)

    Sec

    2.3

    Motor capacity

    controller


    SYNTEC 22MA

    spindle motor

    kW

    18.5KW

    Seromotor (X / Y / Z)

    kW

    5.9/5.9/5.9

    Automatic lubrication installation

    w

    20

    Cutting a liquid pump

    w

    750-2

    Power capacity

    kVA

    35

    other

    Air source pressure requirements

    kg/cm2

    6/8

    Cut the tank capacity

    L

    200

    positioning accuracy

    mm

    ­­±0.005/300

    positioning accuracy

    mm

    ±0.003/300

    Floor area and height

    mm

    3300*3200*3300

    Machine tool weight (approx.)

    kg

    8500



    3. Host standard-equipped

    1.SYNTEC 22MA control system

    2. Spindle cone hole blowing

    3 .Cuttingthe  blowing function

    4. Cutting of the coolant system

    5 . Full cover

    6. Automatic lubrication system

    7. Foundation bolts and cushion blocks

    8.Toolbox and Tools

    9. Work light

    10 . Operation status indicator light

    11  .Mobile hand-shake pulse generator

    12. Hand blowing an air gun

    13 . The machine washes the water gun

    14  .Mechanical, electrical, and operational instructions

    15. Rigid attack teeth

    16. Electrical box heat exchanger

    17. transformer

    18. Manual pine knife device

    19. Automatic tool switching system

    20. Three-axis slide rail telescopic shield

    21. Z-axis nitrogen gas counterweight


    4. Random attachment

    P / N

    name of a part

    specifications

    quantity

    *

    hold-all


    A set

    manual of operation


    1

    circuit diagram


    1

    Random accuracy table


    1

    Basic supplies


    A set


    5Main zero unit manufacturers

    order number

    name

    specifications and models

    country of origin

    manufacturer

    1

    numerical control system

    SYNTEC 22MA

    Taiwan, China

    SYNTEC

    2

    spindle motor

    18.5kW

    Taiwan, China

    SYNTEC

    3

    XYZ Axis motor

    5.9/5.9/5.9 kW

    Taiwan, China

    SYNTEC

    4

    Change the knife-tool manipulator structure

    Cam-type BT50-24T

    Taiwan, China

    Speedcn

    5

    ball screw pair

    Φ40/12

    Japan

    THK

    6

    Rolling bead wire bar bearing

    30TAC62B

    Japan

    NSK/FAG

    7

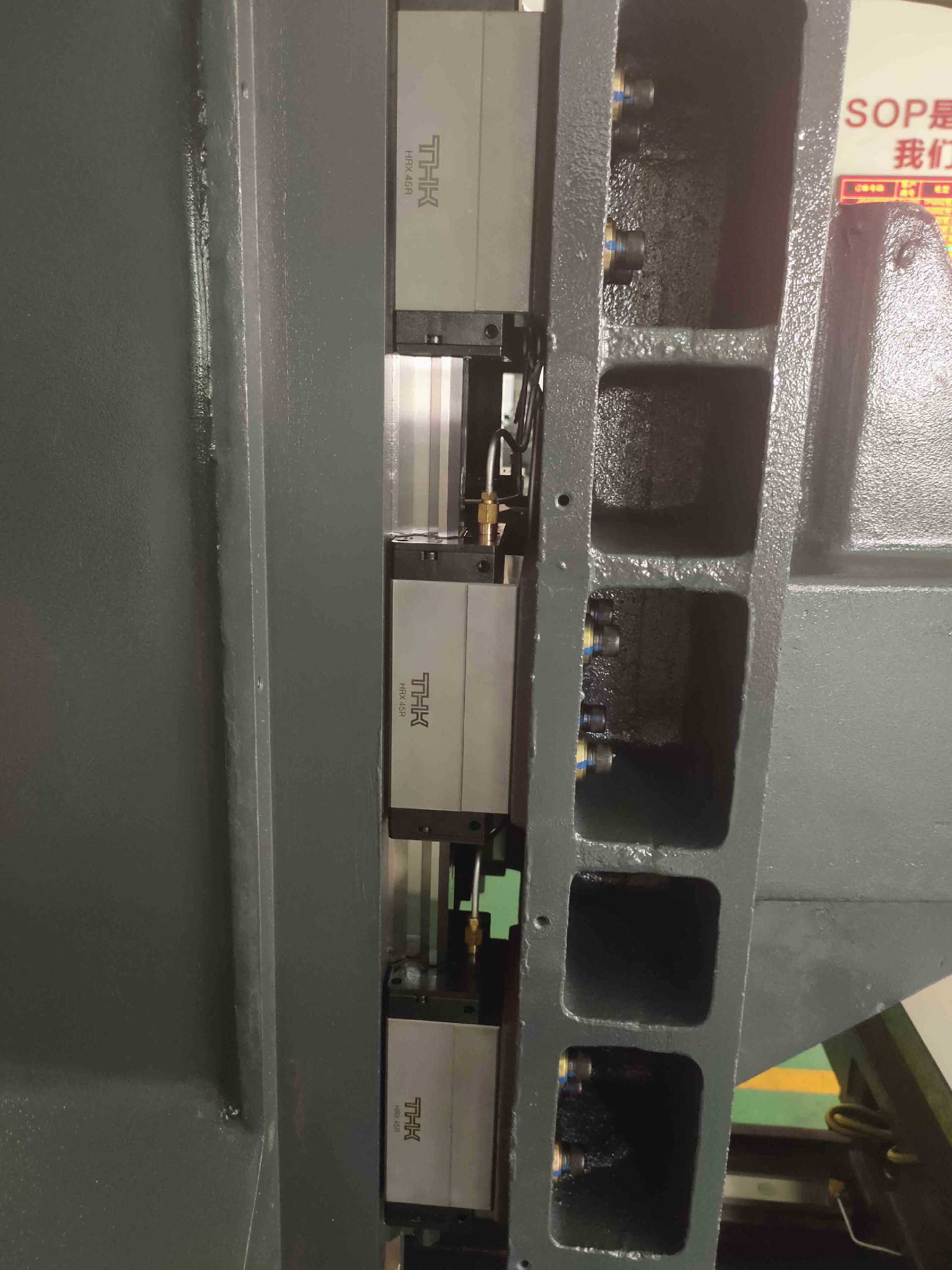

    Linear guide rail

    X:45*3

    Y:45*2(4 lead rail

    Japan

    THK

    8

     principal axis

    BT-50-8000RPM

    Taiwan, China

    Speedcn

    9

    electrical apparatus element


    France

    Schneider
