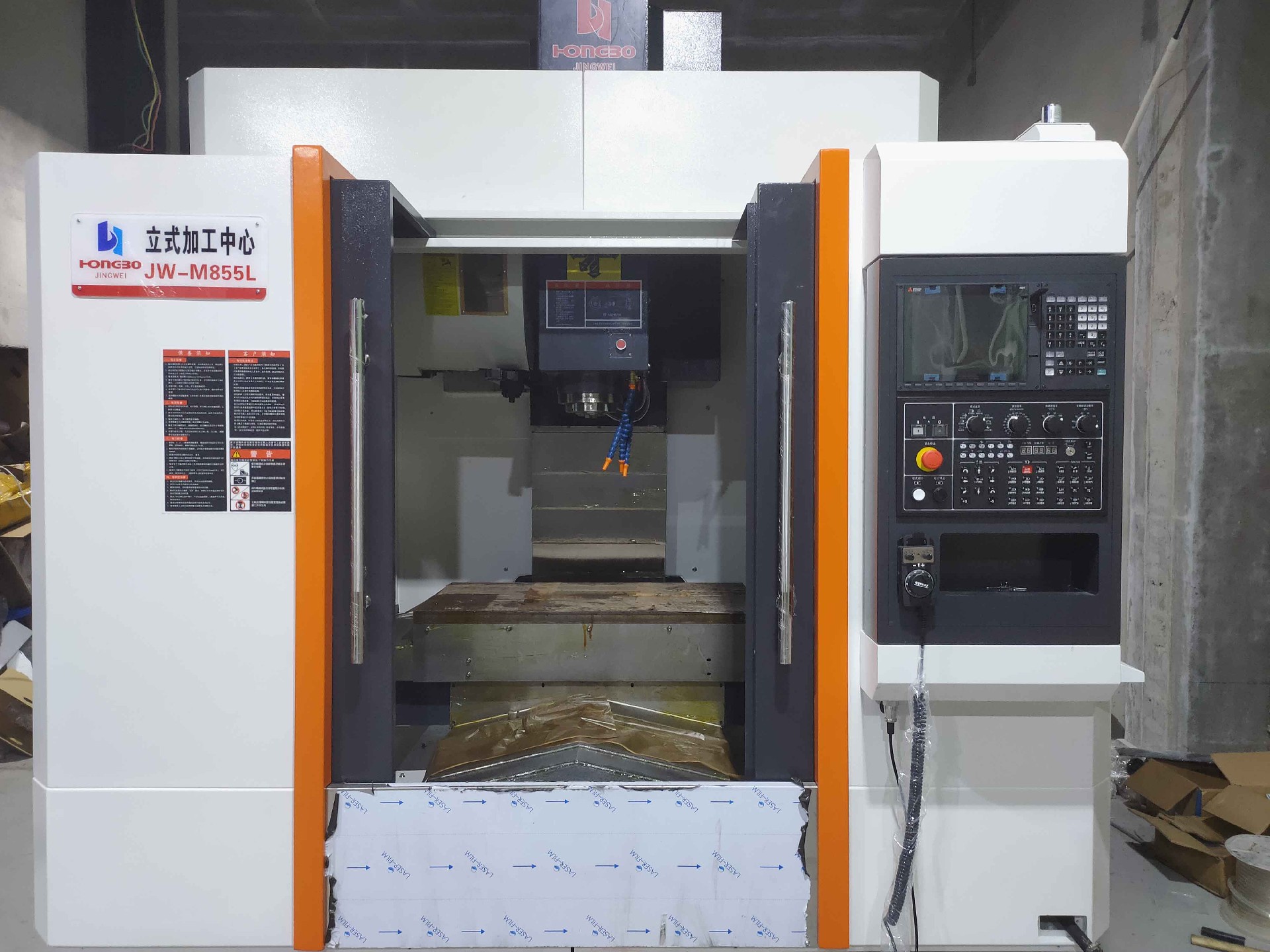

Machining Center JW-M855L

1. Main features of the machine tools

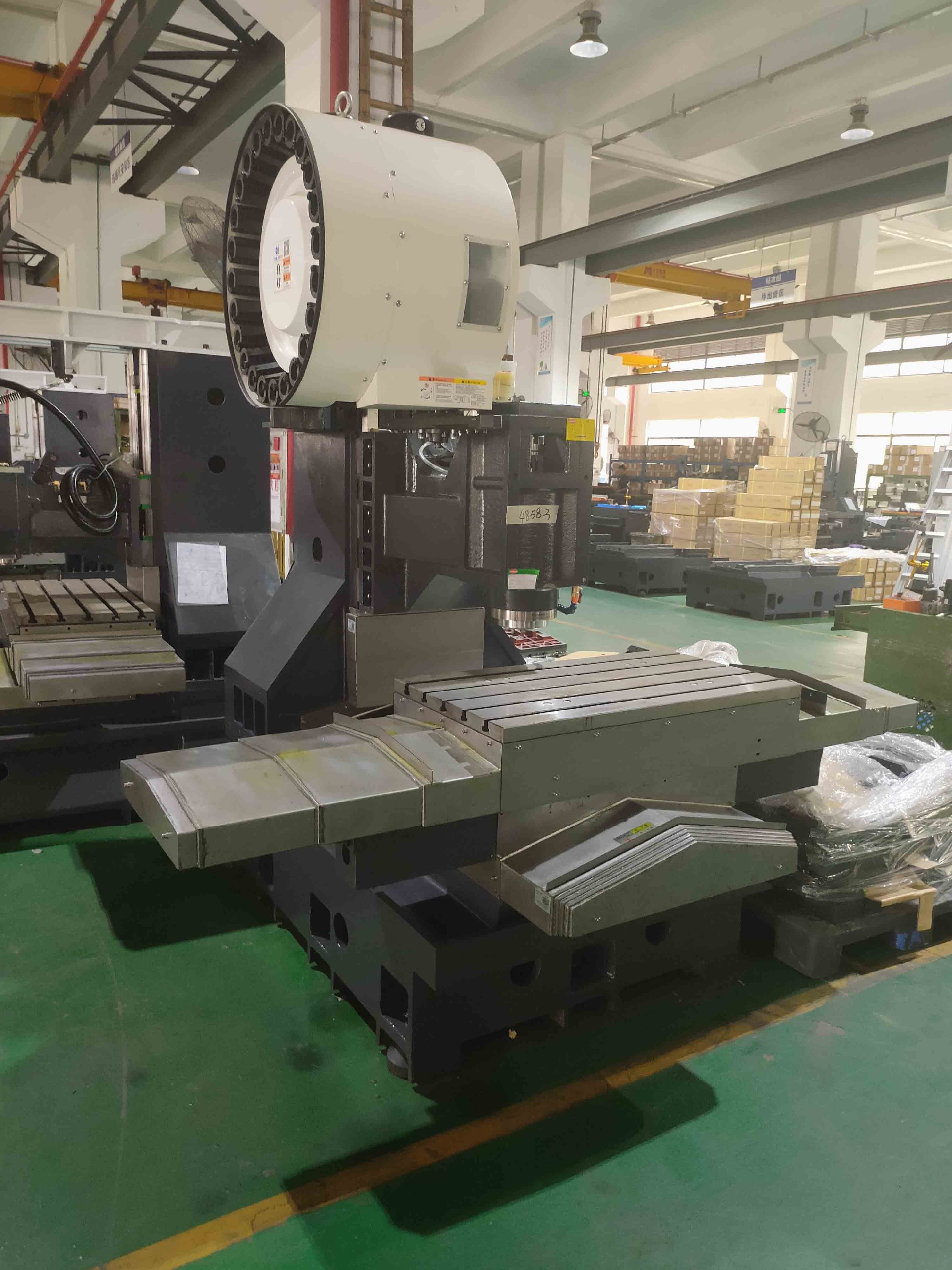

1. The main shaft box and other key components adopt high-quality TH 300 castings. The reasonable structural strength is calculated and analyzed by finite element analysis to provide high mechanical rigidity. The casting structure adopts integrated molding technology box structure machine tool has high rigidity and high strength, with excellent geometric positioning accuracy is excellent. And can ensure the long-term stability and high precision.

2. The base is wide, the column is a box structure, the saddle is widened and lengthened, the heavy load full support design, solid structure, can ensure the heavy load capacity during processing.

3. The spindle box is reinforced with ribs, and the contact length ratio between the spindle box and the column is appropriate to provide stable support for the spindle.

4. Three-axis motor and precision high-speed ball screw direct transmission, enhance rigidity and improve precision.

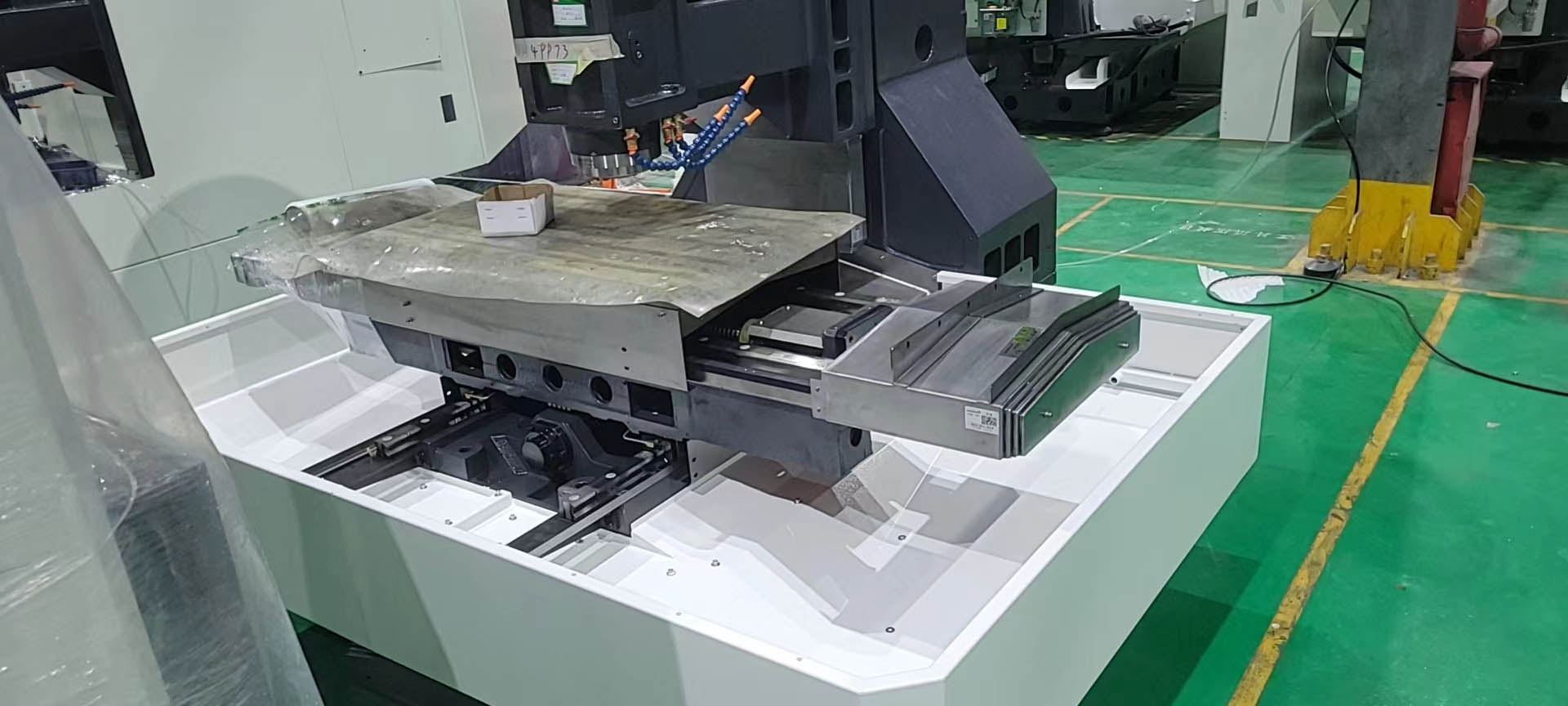

5. The three-axis adopts a 45 roller linear guide rail, which has the characteristics of high rigidity, low noise, and low friction, and can do fast displacement and obtain the best circular accuracy.

6. The cutting fluid capacity is large, which can quickly discharge the cutting heat. The water tank is L-type and placed on both sides of the machine to save space.

7. A fast, simple, reliable, and long-life tool exchange device, to provide stable and reliable tool exchange. Unique tool switching device design, advanced cam-type drive mechanism, arbitrary position knife selection ability, can be quickly controlled by PLC software. The knife changing mechanism has been tested one million times and meets the reliability requirements. Quick knife mechanism saves cutting time and improves production efficiency. The cam-driven knife library ensures high-precision rotation and runs smoothly with heavy-duty tools.

8. Standard rotation speed of the spindle is 8,000 rpm. Standard machine set uses a large horsepower spindle motor. Spindle and motor belt connection greatly reduces the transmission noise and heat generation. The spindle uses G-TECH GT-5052A dynamic balance correction equipment to directly correct the spindle's dynamic balance online, so that the spindle can avoid the resonance phenomenon at high speed and ensure the best machining accuracy. Belt 10000 rpm, straight junction 12000 rpm spindle for high-speed cutting

9. Use high high-strength and toughness four-flap claw pull knife, large contact surface, strong grasp force, small handle pull nail loss, and long life.

10. The electrical box adopts the rear hanging design, which saves the occupied space, makes the limited space, and obtains the maximum use.

2. Mechanical specifications

2.  Host standard-equipped

1. SYNTEC 22MA

2. Spindle cone hole blowing

3. Cutting the blowing function

4. Cutting of the coolant system

5. Full cover

6. Automatic lubrication system

7. Foundation bolts and cushion blocks

8. Toolbox and Tools

9. work light

10. Operation status indicator lamp

11. Mobile hand-shake pulse generator

12. Hand blowing air gun

13. The machine washes the water gun

14. Mechanical, electrical, and operational instructions

15. Rigid attack teeth

16. Electrical box heat exchanger

17. Manual pine knife device

18. Automatic tool switching system

19. Three-axis slide rail telescopic shield

20. Z-axis nitrogen balance cylinder counterweight
